PROFESSIONAL OPTICAL MAGNIFICATION SYSTEM
9892BC

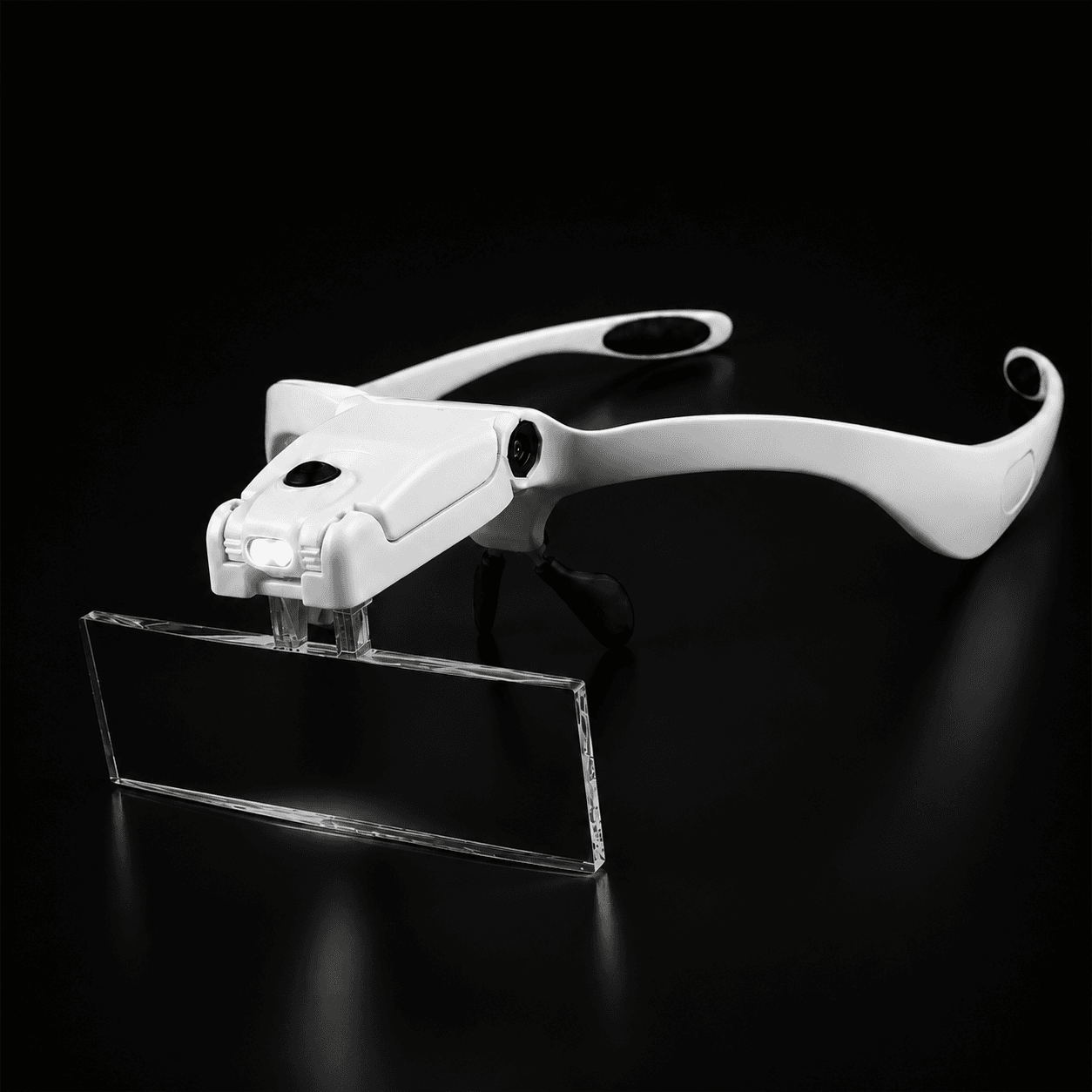

Eyeglass LED Magnifier
Focus on every graft. See every detail.
Eyeglass / headband interchangeable magnification with five lenses, two LED units and Micro USB rechargeable power.
Key Features
Key Features
Interchangeable Magnification
Five lenses cover 1.0× to 3.5× magnification for different working distances.
5 lenses
Integrated LED Illumination
Two front-facing LED units provide localized light directly over the observed area.
2 LEDs
Hands-Free Wearing Configuration
Use it as an eyeglass magnifier or attach the included elastic headband for extra stability.
Eyeglass / Headband
Rechargeable Operation
Micro USB charging, 150 mAh battery capacity and charging indicator light.
150 mAh
Technical Specifications
Technical Specifications
Optical Configuration
| Lens Size | 85 × 28.5 mm |
|---|---|
| Magnification Levels | 1.0× · 1.5× · 2.0× · 2.5× · 3.5× |
| Number of Lenses | 5 interchangeable lenses |
| Approximate Focal Distances | 500 mm · 330 mm · 250 mm · 200 mm · 140 mm |
| Lens Surface | Reinforced acrylic lens surface |
| Lens Surface Hardness | Up to 5H |
| Lens Holder | Secure Lens Holder |
| Lens Support Adjustment | Up to 90° |
| Wearing Configuration | Eyeglass configuration or elastic headband |
Illumination & Power
| Light Source | 2 integrated LED units |
|---|---|
| Brightness Levels | Low brightness · High brightness |
| Switch Type | Physical power switch |
| LED Module Adjustment | Up to 45° |
| Battery / Charging Status | Charging indicator light: red while charging / green when fully charged |
| Power Source | Rechargeable battery |
| Battery Capacity | 150 mAh |
| Charging Voltage | 5 V |
| Adapter Input Voltage | 110–240 V AC |
| Frequency | 50 Hz |
| Adapter Output Voltage | 5 V DC |
| LED Power | 0.1 W |
| Maximum Power Consumption | 0.15 W |
| Charging Interface | Micro USB |
| Approximate Charging Time | 1 hour |
Product Identification
| Product Reference | 9892BC |
|---|---|
| Application No. | 201030635091.9 |
| Country of Origin | Made in China |
Magnification & Focus Guide
Magnification & Focus Guide
| Magnification | Focal Distance | Typical Use |
|---|---|---|
| 1.0× | 500 mm / 50 cm | Broad field of view and longer working distance |
| 1.5× | 330 mm / 33 cm | General close-up observation |
| 2.0× | 250 mm / 25 cm | Detailed precision work |
| 2.5× | 200 mm / 20 cm | Fine detail at shorter distance |
| 3.5× | 140 mm / 14 cm | Maximum detail and shortest working distance |
Focal distances are approximate. Actual focus may vary according to eyesight, lens angle, head position and distance from the observed object.

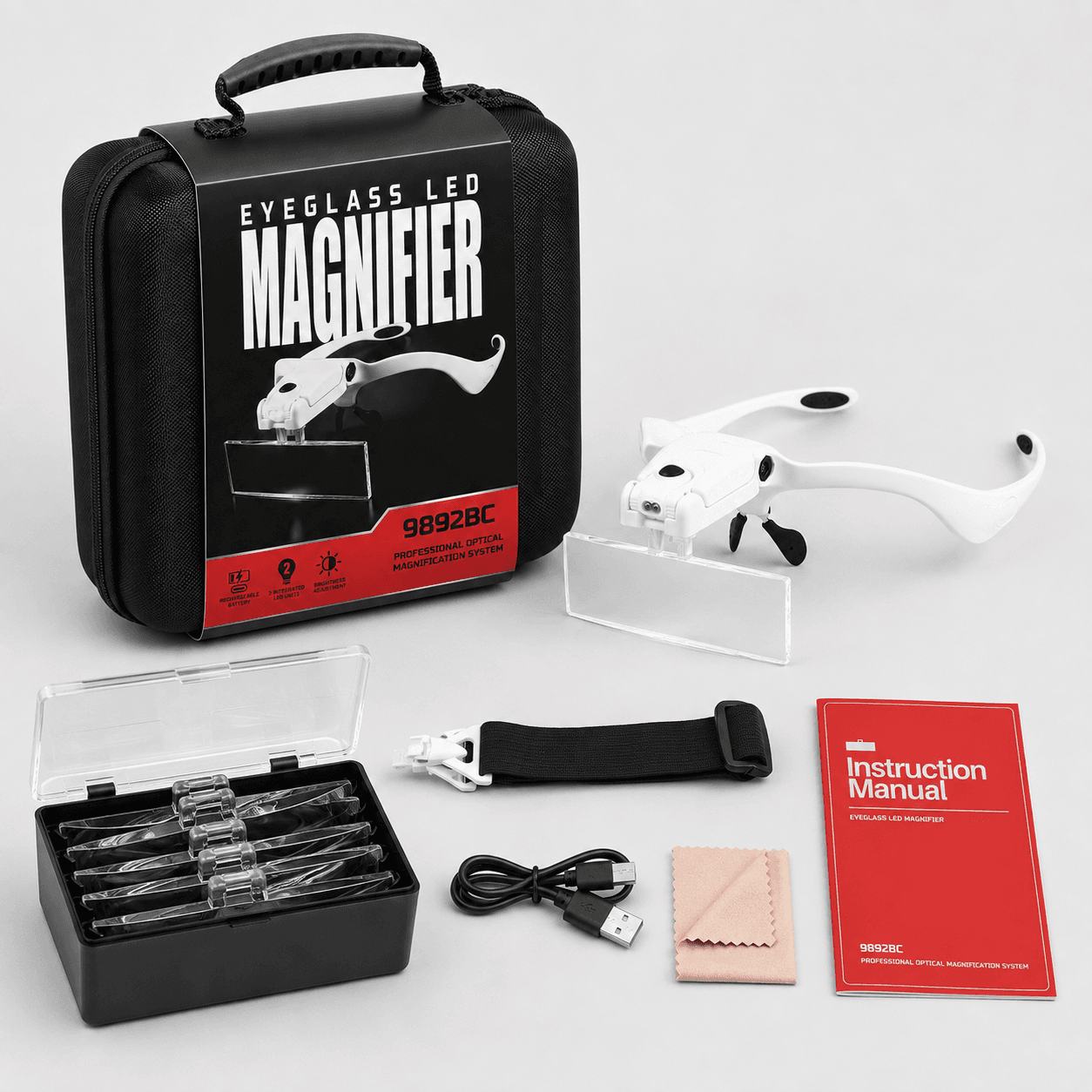

Package Contents
Package Contents
Protective Carrying Case
1 ×Protects the magnifier, lenses and accessories during storage.
Magnifier Unit
1 ×Eyeglass magnifier unit with physical power switch and two LED units.
Wearing System
1 × headbandStandard eyeglass use with replaceable elastic headband included.
Replacement Lenses
5 ×Includes 1.0×, 1.5×, 2.0×, 2.5× and 3.5× lenses.
Charging Cable & Wipe Cloth
1 × eachMicro USB charging cable and wipe cloth for routine lens care.
User Manual
1 ×Instructions for adjustment, charging, maintenance and safe use.
Safety Precautions
Safety Precautions
Optical Safety
- Never look at the sun through the magnifying lenses.
- Keep lenses away from direct sunlight when not in use.
- Focused sunlight may create a fire hazard.
Charging Safety
- Use a suitable USB power source.
- Do not use LED illumination while charging.
- Stop using the device if abnormal heat, odour or deformation occurs.
Lens Care
- Handle lenses by their outer edges.
- Clean with the supplied wipe cloth or a soft lint-free cloth.
- Do not use alcohol, solvents or abrasive materials.
Storage & Handling
- Store the system inside the protective carrying case.
- Avoid dropping, striking or bending the frame and lenses.
- Keep out of reach of children.
FAQ
Frequently Asked Questions
What is the 9892BC used for?
It is a hands-free optical magnification system with localized LED illumination for precision visual work in clinical, laboratory and technical environments.
What magnification levels are included?
1.0× · 1.5× · 2.0× · 2.5× · 3.5×
How do I choose the correct lens?
Start with the lowest magnification that provides enough detail. Move to a higher magnification only when a closer, more detailed view is required.
Why does the image look blurry?
Blur is usually caused by an unsuitable lens, incorrect working distance, improper lens angle, dirty optics or uncorrected eyesight. Adjust the distance and lens angle gradually until the image becomes sharp.
How is the wearing configuration adjusted?
Use the standard eyeglass configuration or remove the detachable spectacle arms and replace them with the included headband for a more secure and comfortable wearing configuration.
How do I operate the LED illumination?
Press the physical power switch to cycle through low brightness, high brightness and off.
How do I charge the device?
Use the supplied Micro USB cable with a suitable USB power source. Do not use the LED illumination while charging. The charging indicator light is red while charging and green when charging is complete; this model does not have a battery level display.
How should I clean and protect the lenses?
Handle lenses by their outer edges and clean them with the supplied wipe cloth or a soft lint-free cloth. Do not use alcohol, solvents or abrasive materials, and store the system in the protective carrying case when not in use.
Need help with this model?
For lens selection, focusing, charging or replacement components, contact Paranton and include the product reference 9892BC.
