PROFESSIONAL OPTICAL MAGNIFICATION SYSTEM
81007BC

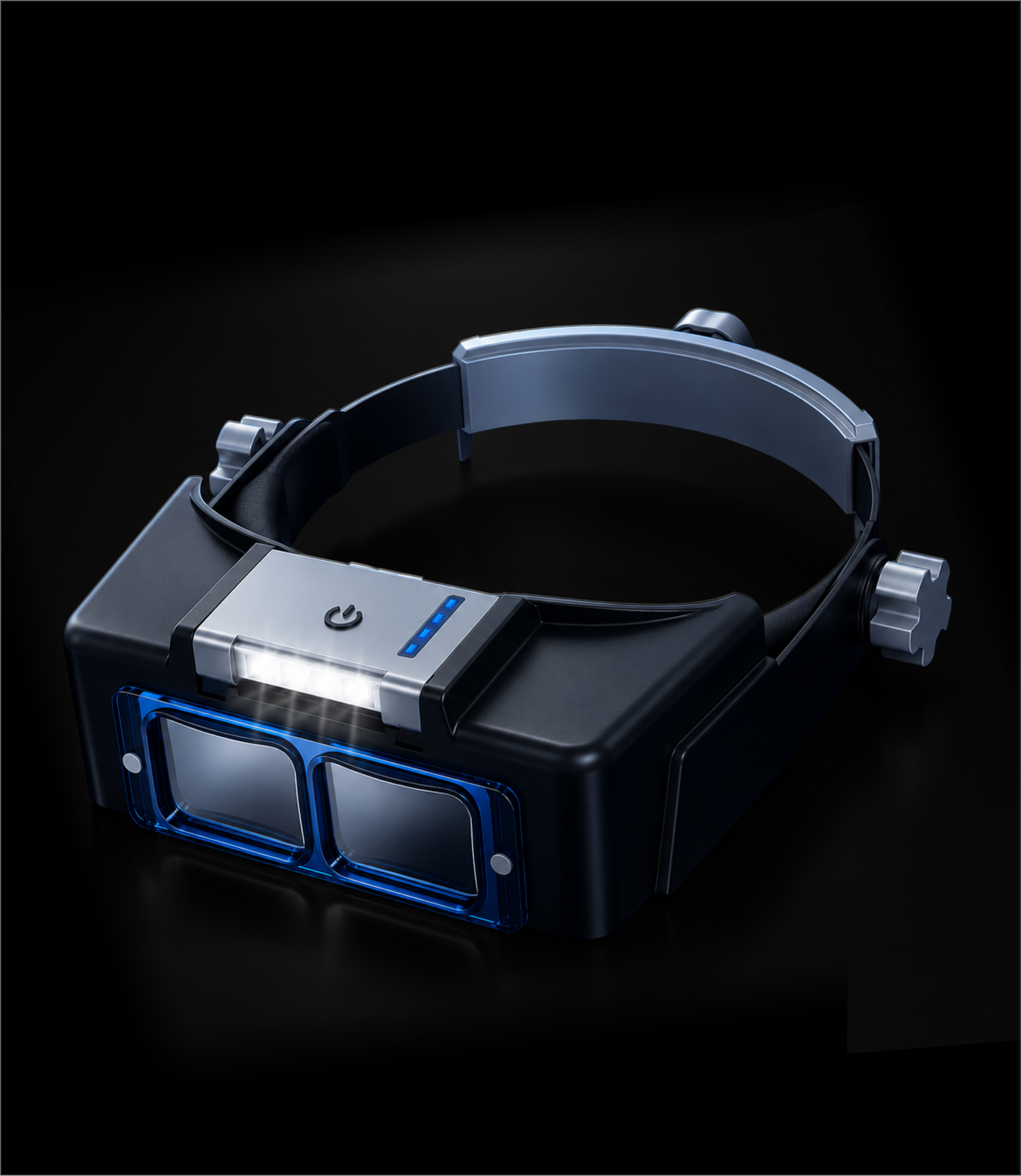

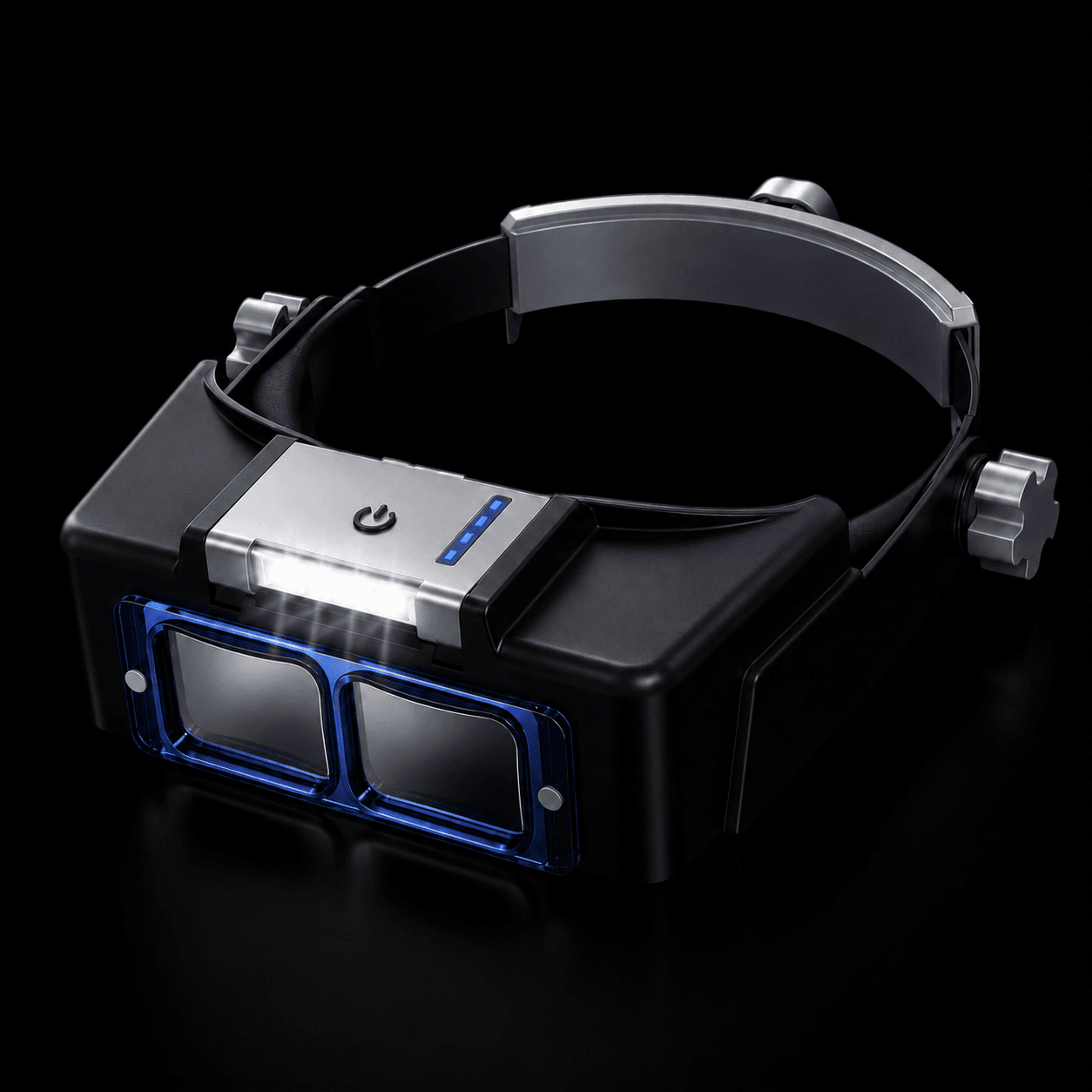

Head-Mounted LED Magnifier
Focus on every graft. See every detail.
Head-mounted optical magnification with four interchangeable lenses, four LED units and rechargeable USB Type-C power for precision visual work.
Key Features
Key Features
Interchangeable Magnification
Four replacement lenses cover 1.5× to 3.5× magnification for different working distances.
4 lenses
Integrated LED Illumination
Four integrated LED units provide localized illumination over the working area.
4 LEDs
Hands-Free Wearing Configuration
Adjustable head-mounted structure supports stable, hands-free use during detailed visual tasks.
Head-mounted
Rechargeable Operation
USB Type-C charging, 300 mAh battery capacity and four-level battery indication for power status.
300 mAh
Technical Specifications
Technical Specifications
Optical Configuration
| Lens Size | 85 × 30 mm |
|---|---|
| Magnification Levels | 1.5× · 2.0× · 2.5× · 3.5× |
| Number of Lenses | 4 interchangeable lenses |
| Approximate Focal Distances | 333 mm · 250 mm · 200 mm · 142 mm |
| Lens Surface | Reinforced acrylic lens surface |
| Lens Surface Hardness | Up to 5H |
| Lens Holder | Lens retaining pins |
| Viewing-Angle Adjustment | Adjustable with side locknuts |
| Wearing Configuration | Adjustable head-mounted configuration |
Illumination & Power
| Light Source | 4 integrated LED units |
|---|---|
| Brightness Levels | Low brightness · High brightness |
| Battery / Charging Status | Four-level battery indicator |
| Power Source | Rechargeable battery |
| Battery Capacity | 300 mAh |
| Battery Model | 702025 |
| Nominal Voltage | 3.7 V |
| Adapter Input Voltage | 110–240 V AC |
| Frequency | 50 Hz |
| Adapter Output Voltage | 5 V DC |
| Rated Power | 4 W |
| Maximum Power Consumption | 5 W |
| Charging Interface | USB Type-C |
| Approximate Charging Time | 1.5 hours |
| Approximate Operating Time | 6–7 hours on low / 3–4 hours on high |
Product Identification
| Product Reference | 81007BC |
|---|---|
| Patent No. | CN202230100910.2 |
| Country of Origin | Made in China |
Magnification & Focus Guide
Magnification & Focus Guide
| Magnification | Focal Distance | Typical Use |
|---|---|---|
| 1.5× | 333 mm / 33.3 cm | General close-up observation |
| 2.0× | 250 mm / 25 cm | Detailed precision work |
| 2.5× | 200 mm / 20 cm | Fine detail at shorter distance |
| 3.5× | 142 mm / 14.2 cm | Maximum detail and shortest working distance |
Focal distances are approximate. Actual focus may vary according to eyesight, lens angle, head position and distance from the observed object.

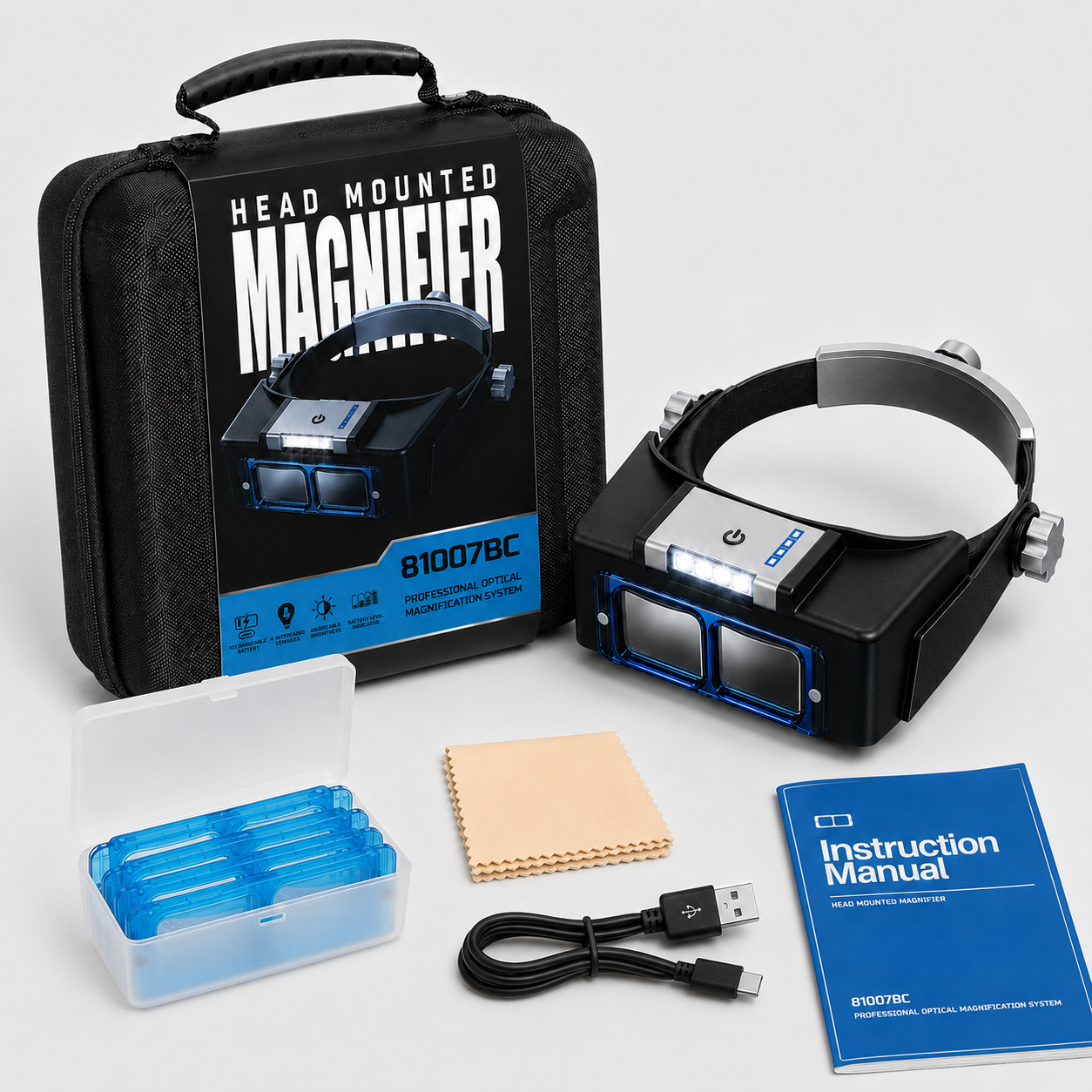

Package Contents
Package Contents
Protective Carrying Case
1 ×Protects the magnifier, lenses and accessories during storage.
Magnifier Unit
1 ×Head-mounted magnifier unit with rechargeable LED light source.
Wearing System
IntegratedAdjustable headband structure for stable hands-free use.

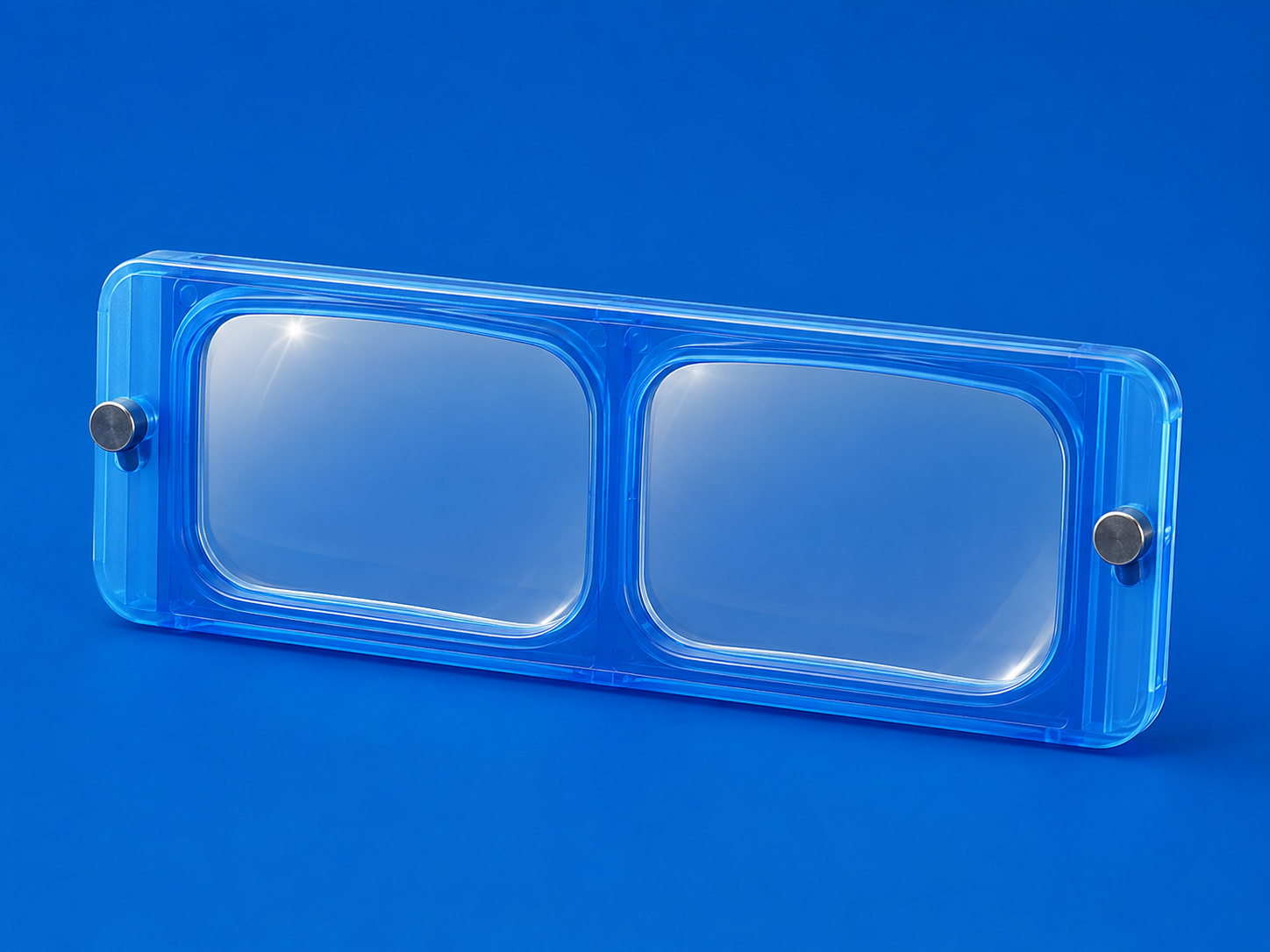

Replacement Lenses
4 ×Includes 1.5×, 2.0×, 2.5× and 3.5× lenses.
Charging Cable & Wipe Cloth
1 × eachUSB Type-C charging cable and wipe cloth for routine lens care.
User Manual
1 ×Instructions for adjustment, charging, maintenance and safe use.
Safety Precautions
Safety Precautions
Optical Safety
- Never look at the sun through the magnifying lenses.
- Keep lenses away from direct sunlight when not in use.
- Focused sunlight may create a fire hazard.
Charging Safety
- Use a suitable USB power source.
- Do not use LED illumination while charging.
- Stop using the device if abnormal heat, odour or deformation occurs.
Lens Care
- Handle lenses by their outer edges.
- Clean with the supplied wipe cloth or a soft lint-free cloth.
- Do not use alcohol, solvents or abrasive materials.
Storage & Handling
- Store the system inside the protective carrying case.
- Avoid dropping, striking or bending the frame and lenses.
- Keep out of reach of children.
FAQ
Frequently Asked Questions
What is the 81007BC used for?
It is a hands-free optical magnification system with localized LED illumination for precision visual work in clinical, laboratory and technical environments.
What magnification levels are included?
1.5× · 2.0× · 2.5× · 3.5×
How do I choose the correct lens?
Start with the lowest magnification that provides enough detail. Move to a higher magnification only when a closer, more detailed view is required.
Why does the image look blurry?
Blur is usually caused by an unsuitable lens, incorrect working distance, improper lens angle, dirty optics or uncorrected eyesight. Adjust the distance and lens angle gradually until the image becomes sharp.
How is the wearing configuration adjusted?
Pull the rear adjustment wheel outward to unlock it, rotate the wheel to loosen or tighten the headband to the desired fit, then press it inward to lock the selected adjustment. Loosen the side locknuts to adjust the viewing angle and tighten them again to secure the position.
How do I operate the LED illumination?
Press once for low brightness, twice for high brightness and three times to switch the LEDs off. Approximate runtime is 6–7 hours on low and 3–4 hours on high.
How do I charge the device?
Use the supplied USB-A to USB-C cable with a suitable USB power source. Charging takes approximately 1.5 hours and is complete when the 100% indicator stops flashing. Do not use the LED illumination while charging.
How should I clean and protect the lenses?
Handle lenses by their outer edges and clean them with the supplied wipe cloth or a soft lint-free cloth. Do not use alcohol, solvents or abrasive materials, and store the system in the protective carrying case when not in use.
Need help with this model?
For lens selection, focusing, charging or replacement components, contact Paranton and include the product reference 81007BC.
