PROFESSIONAL OPTICAL MAGNIFICATION SYSTEM
9892B2C1

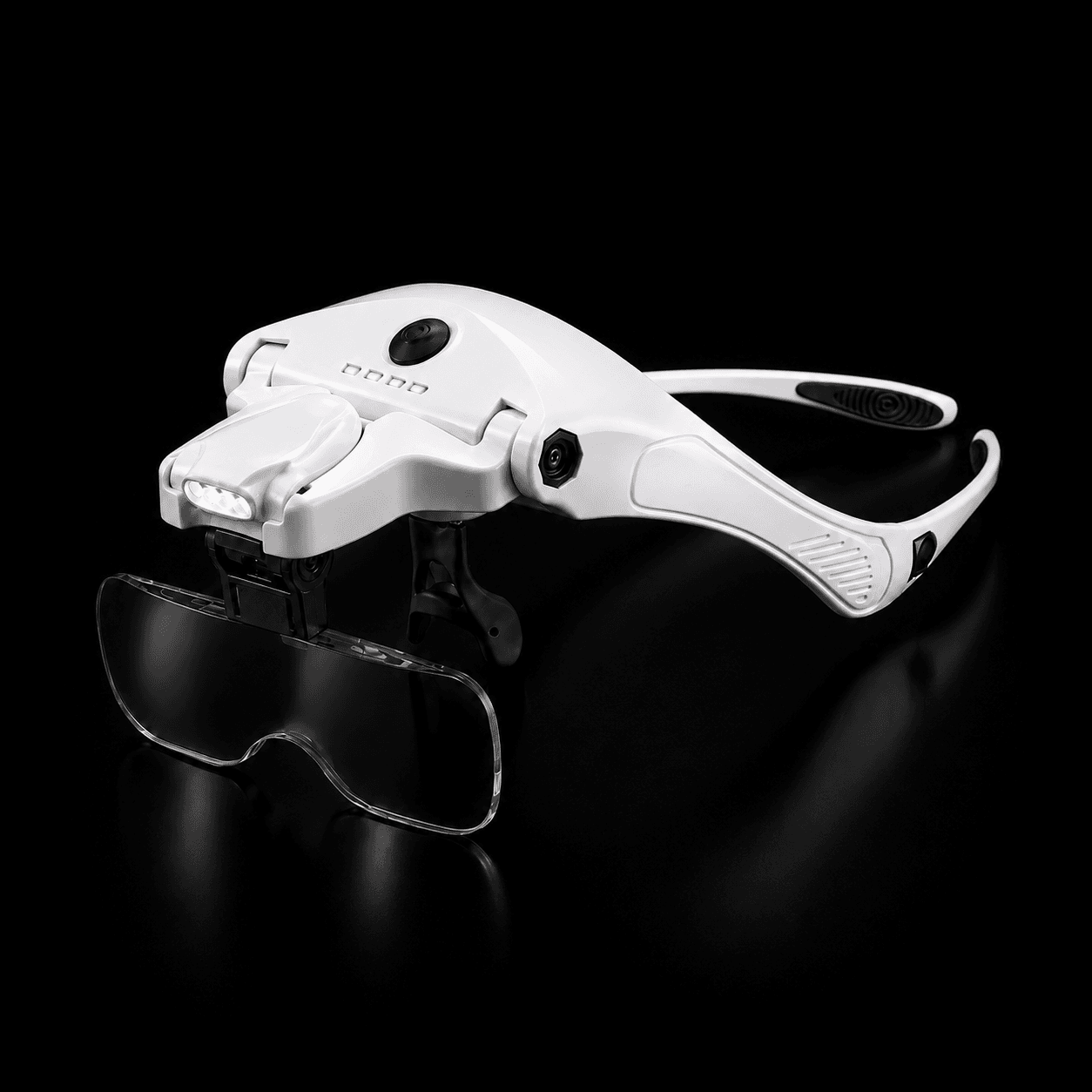

Eyeglass LED Magnifier
Focus on every graft. See every detail.
Eyeglass / headband interchangeable magnification with five lenses, four LED units, four-level battery indication and rechargeable USB Type-C power.
Key Features
Key Features
Interchangeable Magnification
Five lenses cover 1.0× to 3.5× magnification for different working distances.
5 lenses
Integrated LED Illumination
Four front-facing LED units provide localized illumination directly over the observed area.
4 LEDs
Hands-Free Wearing Configuration
Eyeglass brackets can be replaced with the included elastic headband for more secure positioning.
Eyeglass / Headband
Rechargeable Operation
USB Type-C charging, 300 mAh battery capacity and four-level battery indication.
300 mAh
Technical Specifications
Technical Specifications
Optical Configuration
| Lens Size | 95 × 34 mm |
|---|---|
| Magnification Levels | 1.0× · 1.5× · 2.0× · 2.5× · 3.5× |
| Number of Lenses | 5 interchangeable lenses |
| Approximate Focal Distances | 555 mm · 381 mm · 278 mm · 183 mm · 156 mm |
| Lens Surface | Reinforced acrylic lens surface |
| Lens Surface Hardness | Up to 5H |
| Lens Holder | Spring-loaded lens slot |
| Lens Support Adjustment | Up to 60° |
| Wearing Configuration | Eyeglass brackets or elastic headband |
Illumination & Power
| Light Source | 4 integrated LED units |
|---|---|
| Brightness Levels | Low brightness · High brightness |
| Switch Type | Physical power switch |
| LED Module Adjustment | Up to 45° |
| Battery / Charging Status | Four-level battery indicator |
| Power Source | Rechargeable lithium battery |
| Battery Capacity | 300 mAh |
| Battery Model | 602030 |
| Nominal Voltage | 3.7 V |
| Adapter Input Voltage | 110–240 V AC |
| Frequency | 50 Hz |
| Adapter Output Voltage | 5 V DC |
| LED Power | 0.28 W |
| Maximum Power Consumption | 0.42 W |
| Charging Interface | USB Type-C |
| Approximate Charging Time | 1.5 hours |
Product Identification
| Product Reference | 9892B2C1 |
|---|---|
| Country of Origin | Made in China |
Magnification & Focus Guide
Magnification & Focus Guide
| Magnification | Focal Distance | Typical Use |
|---|---|---|
| 1.0× | 555 mm / 55.5 cm | Broad field of view and longer working distance |
| 1.5× | 381 mm / 38.1 cm | General close-up observation |
| 2.0× | 278 mm / 27.8 cm | Detailed precision work |
| 2.5× | 183 mm / 18.3 cm | Fine detail at shorter distance |
| 3.5× | 156 mm / 15.6 cm | Maximum detail and shortest working distance |
Focal distances are approximate. Actual focus may vary according to eyesight, lens angle, head position and distance from the observed object.

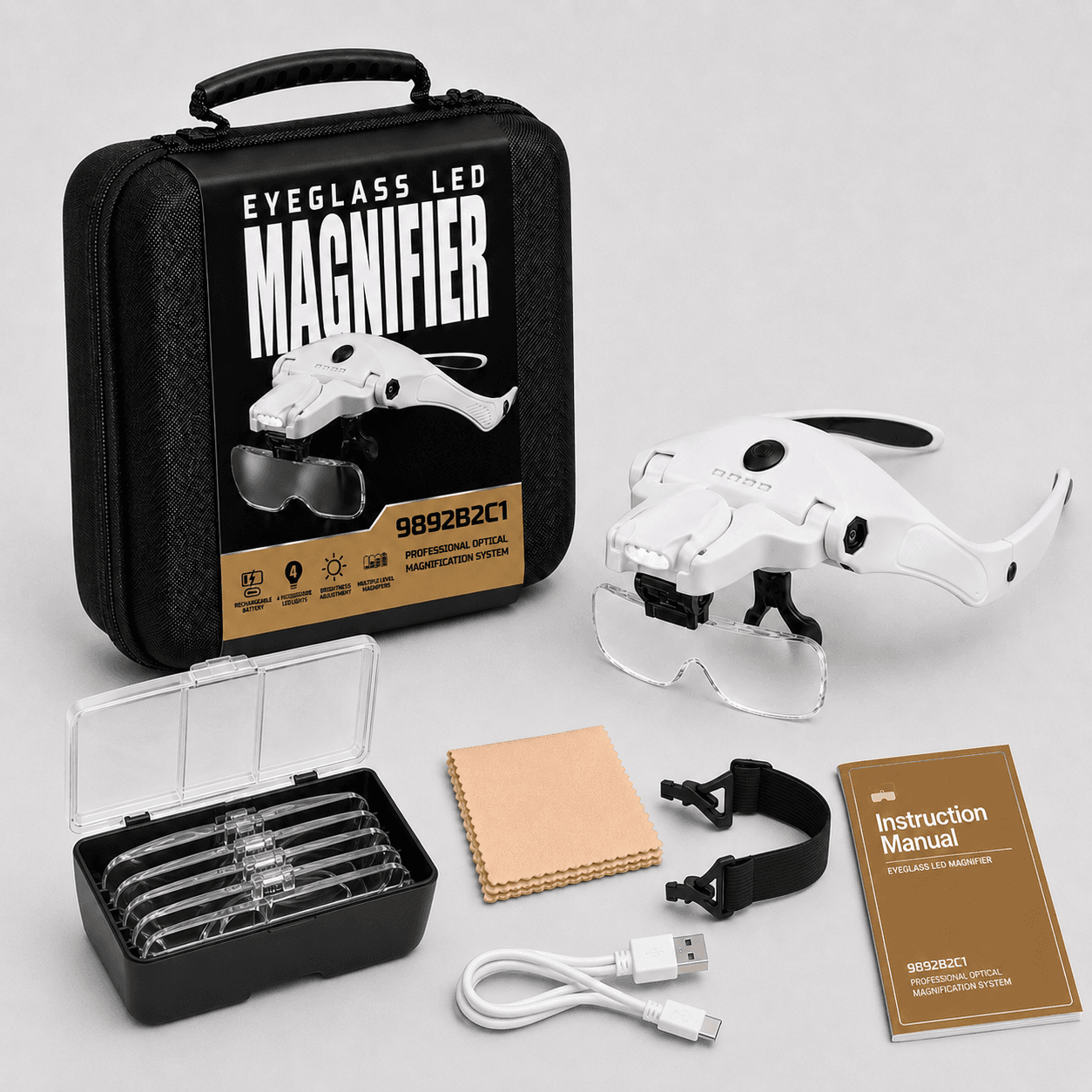

Package Contents
Package Contents
Protective Carrying Case
1 ×Protects the magnifier, lenses and accessories during storage.
Magnifier Unit
1 ×Rechargeable unit with physical switch, four LEDs and battery indicators.
Wearing System
1 × headbandEyeglass brackets plus replaceable elastic headband for additional stability.
Replacement Lenses
5 ×Includes 1.0×, 1.5×, 2.0×, 2.5× and 3.5× lenses.
Charging Cable & Wipe Cloth
1 × eachUSB Type-C charging cable and wipe cloth for routine lens care.
User Manual
1 ×Instructions for adjustment, charging, maintenance and safe use.
Safety Precautions
Safety Precautions
Optical Safety
- Never look at the sun through the magnifying lenses.
- Keep lenses away from direct sunlight when not in use.
- Focused sunlight may create a fire hazard.
Charging Safety
- Use a suitable USB power source.
- Do not use LED illumination while charging.
- Stop using the device if abnormal heat, odour or deformation occurs.
Lens Care
- Handle lenses by their outer edges.
- Clean with the supplied wipe cloth or a soft lint-free cloth.
- Do not use alcohol, solvents or abrasive materials.
Storage & Handling
- Store the system inside the protective carrying case.
- Avoid dropping, striking or bending the frame and lenses.
- Keep out of reach of children.
FAQ
Frequently Asked Questions
What is the 9892B2C1 used for?
It is a hands-free optical magnification system with localized LED illumination for precision visual work in clinical, laboratory and technical environments.
What magnification levels are included?
1.0× · 1.5× · 2.0× · 2.5× · 3.5×
How do I choose the correct lens?
Start with the lowest magnification that provides enough detail. Move to a higher magnification only when a closer, more detailed view is required.
Why does the image look blurry?
Blur is usually caused by an unsuitable lens, incorrect working distance, improper lens angle, dirty optics or uncorrected eyesight. Adjust the distance and lens angle gradually until the image becomes sharp.
How is the wearing configuration adjusted?
Use the standard eyeglass brackets or remove them and replace them with the included headband for a more secure and comfortable wearing configuration.
How do I operate the LED illumination?
Press the physical power switch to cycle through low brightness, high brightness and off.
How do I charge the device?
Recharge when only one battery-level indicator remains illuminated. Use the supplied USB-C cable with a suitable 5 V USB power source. During charging, the four battery indicators illuminate progressively; charging is complete when all four indicators remain steadily illuminated. Do not use the LED illumination while charging.
How should I clean and protect the lenses?
Handle lenses by their outer edges and clean them with the supplied wipe cloth or a soft lint-free cloth. Do not use alcohol, solvents or abrasive materials, and store the system in the protective carrying case when not in use.
Need help with this model?
For lens selection, focusing, charging or replacement components, contact Paranton and include the product reference 9892B2C1.
